Transformers    Manufacturer Description  Price Each      Triad F-10U 5Vct 14A $12.50           HTA 2000 28/32 vct OEM Transformer for the Dual 25 amps $9.95            Signal BL1752 Primary 230V Secondary 48VCT 7A & 28VCT 3A or Primary 115V Secondary 24VCT & 14VCT $7.95             115/220V Input Dual 41VRM 6.1A $20.00           Mercury Magnetics TA110-W 3" X 2 5/8" w/ mounting ears, 115Vac input with voltage taps of 48V, 40V, 24V and 8V, 1 amp estimate $3.95           Suhil Electronics Input: 100/120V Picture Output: 50Vct 2-3Amps and 6-7V 3A $8.95ea

* The three torids in the picture are special purchase items and are listed below in red. Hookup of these toroids for the Brian GT Chip Amp Boards.. Thanks to Xiphmont (aka) Monty for the photos Toroids Part # Breaker Primary Secondary Price               160Va Dual 24 Volts $22.00ea           Amveco Magnetics   100V-110V-120V input  120V 3.5Amp, 21V 19Amp 8.5V 10.5Amp, 37V 3Amp and 12V .2Amp $45.00ea           Basler 16-16431   120V input Marked at 300 Watt checked out as 500W Output Dual 52V, Dual 10V, 20V, and 6.3V taps $25.00ea           Avel-Lindberg Inc  * Input: 2 X 120Vac 50-60 Hz 3 3/4" Dia X 1 1/2" Tall specs Output: 2 X 28.4V @ 2.67Amps over 150Va $22.00ea           Chia Yu Co Ltd  * Input: 2 X 120Vac 50-60Hz 3" Dia X 1 1/2" Tall Output 42Vct 21V- 0 - 21V 80VA Now only $10.00ea or $90 for 10 pieces           Genesis Advanced Technologies   Primaries: Dual 115V (115/230V inputs) Pictures Outputs: 90VCT at 6.6A (600VA), 29.5VCT at 0.75A (22VA), 17V at 0.2A $29.95ea           Keen-Ocean     162Vct 6A, 17V .2A, 24Vct .25A $29.95ea           Amveco     13.6V 300Va $25.00ea WIRING CONNECTIONS FOR THE TOROIDS ABOVE IN RED 2 X 28.4V... For 115Vac Input - Tie the 2 blacks and Brown together along with Tying the 2 Whites and Blue together OUTPUT- Black is the center tap and each side Red and Yellow 2 X 25V... For 115Vac Input - Tie the 2 Greys and brown together along with Tying the 2 Violets and Blue together OUTPUT- Black is the center tap and each side Red and Orange 42Vct...... For 115Vac Input- Tie the 2 Blacks and brown together along withTying the 2 Whites and Blue together OUTPUT- The leftover 3 wires All toroids have 120V primaries except those with the * which are 220V. These transformers are were used in the Definitive Technology, Infinity, and Aurtum amps.

Resistors  Value Power Rating Description  Price Each .1 Ohm  300 W  1 1/4 x 8 1/2 Round $3.95  .22 ohm 3 W wire wound $.20 ea $15.00/100 1.5 Ohm  10 W  Axial Sandstone $0.15  2 Ohm  10 W  Axial Sandstone $0.15  3.3 Ohm 10 W Axial Sandstone $0.15 6 Ohm 25 W Axial Sandstone $0.35 6.8 Ohm 10 W Axial Sandstone $0.10 15 Ohm  250 W  RH250-Chasis Mount $7.50  25 Ohm 15 W  Axial Sandstone $.15 ea $10.00/100 25 Ohm 225 W  Ohmite $3.95 50 Ohm 50W Ohmite $1.00 100 Ohm 5 W Wirewound Silicone $0.40 100 Ohm 200W Clarostat $3.50 150 Ohm 10 W Wirewound Silicone $1.00 300 Ohm 10 W Axial Wirewound Silicone $1.00 500 Ohm 10 W Wirewound Silicone $1.00 1K Ohm 9 W Tel Labs RS type Silicone WW $0.75 1K Ohm 10 W Axial Wirewound Silicone $1.00 1.2K Ohm 10 W Axial Sandstone $0.15 2K Ohm 10 W Axial Wirewound Silicone $1.00 7.5K Ohm 225 W  Ohmite $3.95 4KOhm 10 W Axial Sandstone $0.15 200 Meg Ohm  1 W  IRC MVX 1 $0.50

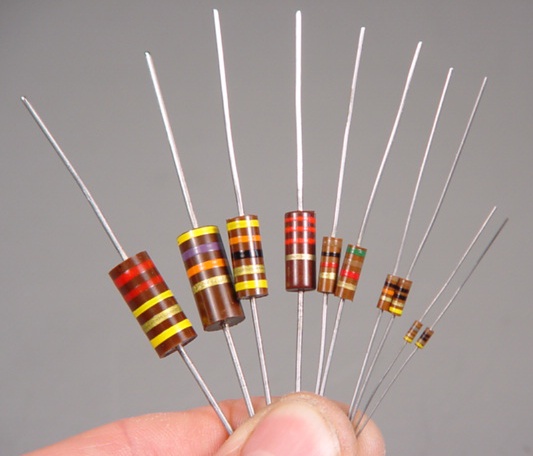

Resistors -Carbon Comp Value Power Rating Price Each Allen-Bradley,IRC,Airco Speer and other carbon composition resistors also available in both comercial and Mil-Spec values

15 Ohm 2 Watt $1.00ea 68 Ohm 2 Watt $1.00ea 150 Ohm 2 Watt $1.00ea 470 Ohm 2 Watt $1.00ea 1 Kohm 2 Watt $1.00ea 270 Ohm 1 Watt $0.50ea 330 Ohm 1 Watt $0.50ea 680 Ohm 1 Watt $0.50ea 22 K Ohm 1 Watt $0.50ea   large quanity available   Many other values available all wattages 1/8-1/4-1/2-1-2W. Please call,fax or email us with your requirements

Fans  5V 1 1/2" square fans 12V DC 1 1/2" square at $2.00ea Papst Fan 4 wire 115V/230V metal fan at $8.95ea Fan Guard .79ea Papst Fan 8-16V Model # 8112G 8Vdc (1.5W)--- 16Vdc (6.5W) 5 blade and all metal 3 1/8" X 3 1/8" X 1 1/2" $4.95ea

Cable Ties/Ty-Raps Locking  Length Color  Price per 100 Price per 1,000 4"  Natural  $2.00  $10.00  5 1/2"  Natural  $2.50  $15.00  7 1/2"  Natural  $3.00  $20.00  8"  Black  $2.75  $17.50  11.5" HD  Natural  $6.00  $50.00  36" Natural  4 for $1.00

Other Items  Description  Price Each AGC/3AG   Fuses 1/2A, 1A, 2A, 3A, 4A, 5A $0.10  AGC/3AG   Fuses 1A, 2A,  2.5A, 3A, 4A, 5A(Slo-blo)  $0.20  4.75 mh Choke   $1.50  PXT-8 2 Way, 75 watt  Crossover, 2,000hz, 8 Ohms $5.00

10 Amp flush mounted DPDT Rocker switch .99ea

We also stock: 1/2 watt, 1 watt, and 2 watt carbon comp resistors.  Relays  Switches  Coax & Coax Connectors  Integrated Circuits  Tubes  Test Equipment  Other Electronic Parts Terminal Strips Movie Props and supplies

Call for Availability and Pricing There are limited quanities for some items. No back orders when stock is depleated. Please call for availability.
